Configure Azure Repos and the Git Integration

Configuration for the SnapLogic Git Integration to use Azure Repos.

Important: Microsoft no longer allows new Azure DevOps OAuth app registrations. Register new apps with Microsoft Entra ID instead. Existing OAuth-based authentication for SnapLogic Git integration continues to work until its EOL in 2026, but we recommend switching to Entra ID as soon as possible.

To use Azure Repos, register SnapLogic with Azure Repos and configure the Git Integration feature in your SnapLogic environment (Org). Each Azure Repos registration applies to one control plane (elastic.snaplogic.com, uat.elastic.snaplogic.com, or emea.snaplogic.com) and covers all environments on that control plane.

  • In Azure Repos, you need:
    • One or more Azure Repos repositories for SnapLogic assets
    • An application registered with Microsoft Entra to handle user authentication requests for the repo access
    • Azure organization administrator permissions to configure the organization settings and to register an app
  • In the SnapLogic environment:
    • A subscription to the SnapLogic Microsoft Azure DevOps Repository feature for each environment
    • Environment admin permissions

Steps

  1. In Azure Repos, follow the instructions to register SnapLogic as a trusted application.

    Use the following values for application registration:

    Field Value
    Application website https://control-plane-name where control-plane-name is the control plane you are using.
    • elastic.snaplogic.com
    • uat.elastic.snaplogic.com
    • emea.snaplogic.com
    Authorization callback URL https://control-plane-name/api/1/rest/asset/app/oauthcallback

    Example: https://cdn.control-plane-name/api/1/rest/asset/app/oauthcallback

    Where control-plane-name is the control plane you are using. For example:

    • elastic.snaplogic.com
    • uat.elastic.snaplogic.com
    • emea.snaplogic.com
    Authorized scopes The following selections are required:
    • User profile (write)
    • Code (full)
  2. Click Create application. The Application Settings page opens. You will need information from this Application Settings page to configure the Git Integration in Admin Manager.

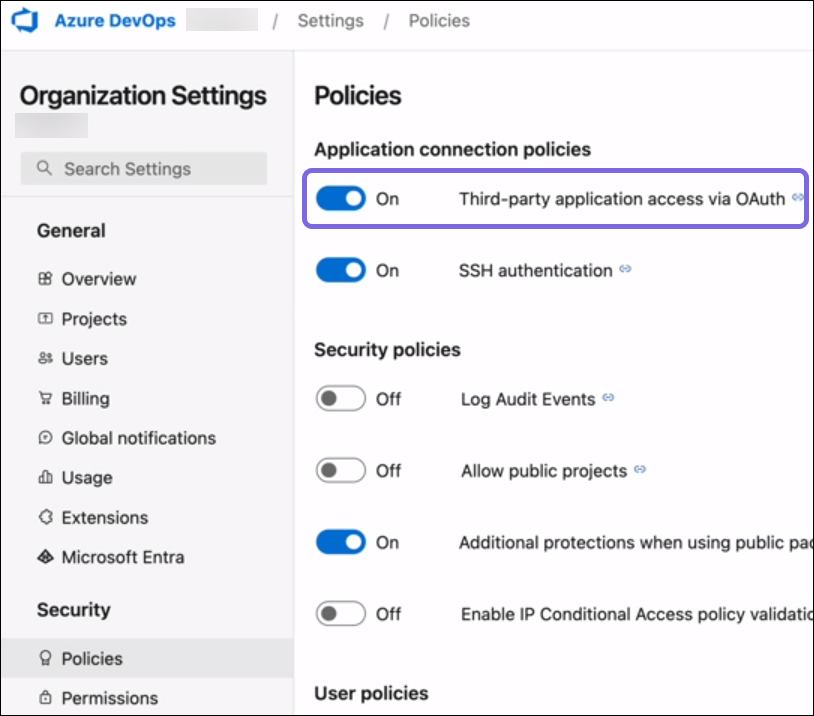

  3. From the Azure DevOps console, navigate to Organization Settings for the appropriate project. In the PoliciesApplication connection policies section, toggle On the Third-party application access via OAuth setting.
    Azure Repo Setting - Third-party Access to OAuth

    Important: Enable third-party access only for the project that will track SnapLogic assets.

  4. Admin Manager

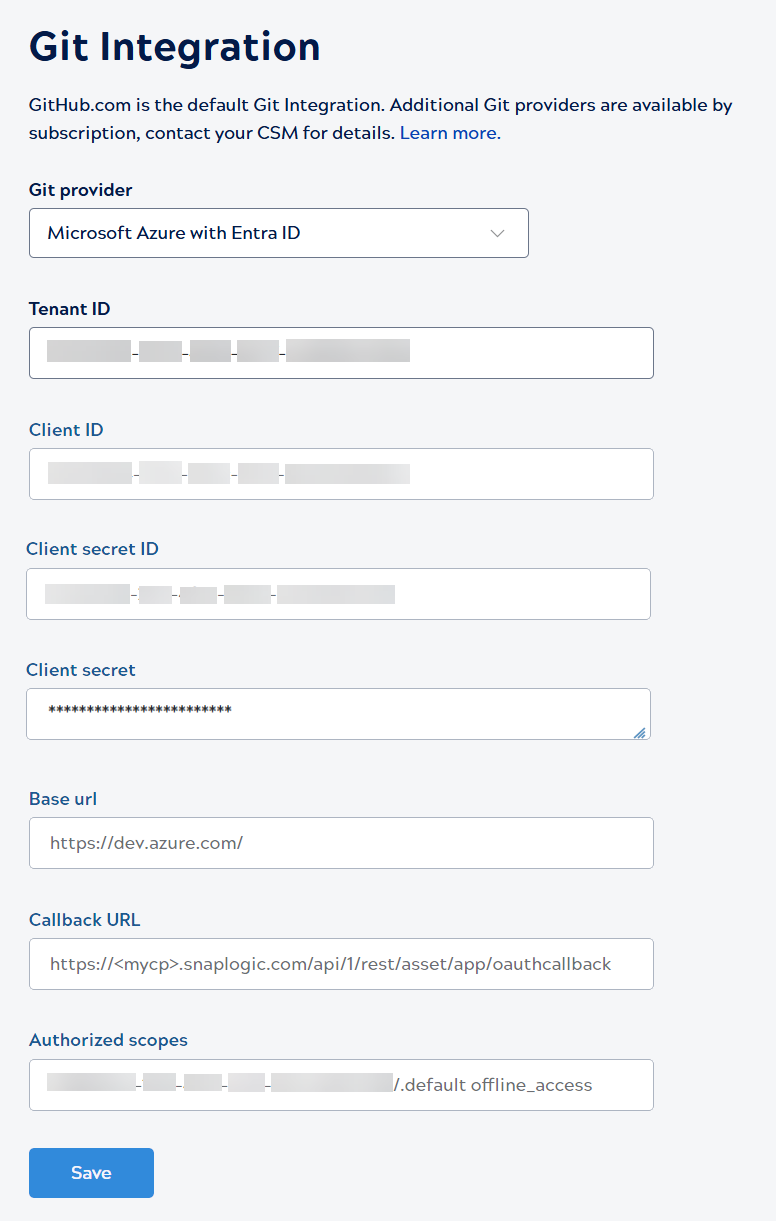

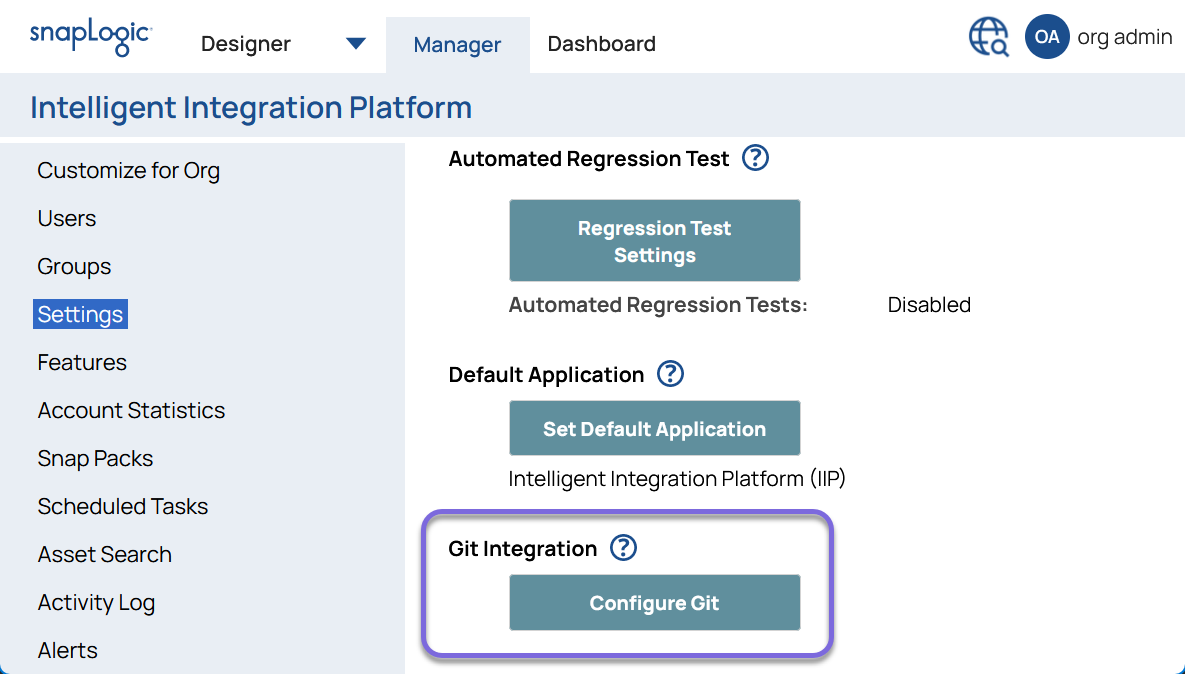

    In SnapLogic Admin Manager, navigate to System Configuration and select Git Integration. In the Git Integration page, configure the settings for Git integration with Azure Repos.

    1. From the Git integration type dropdown, select Microsoft Azure with Entra ID.
    2. Configure the fields as described below. Copy the first four values from the Azure Repos Application Settings page and set the remaining fields as shown.
    Admin Manager field Value

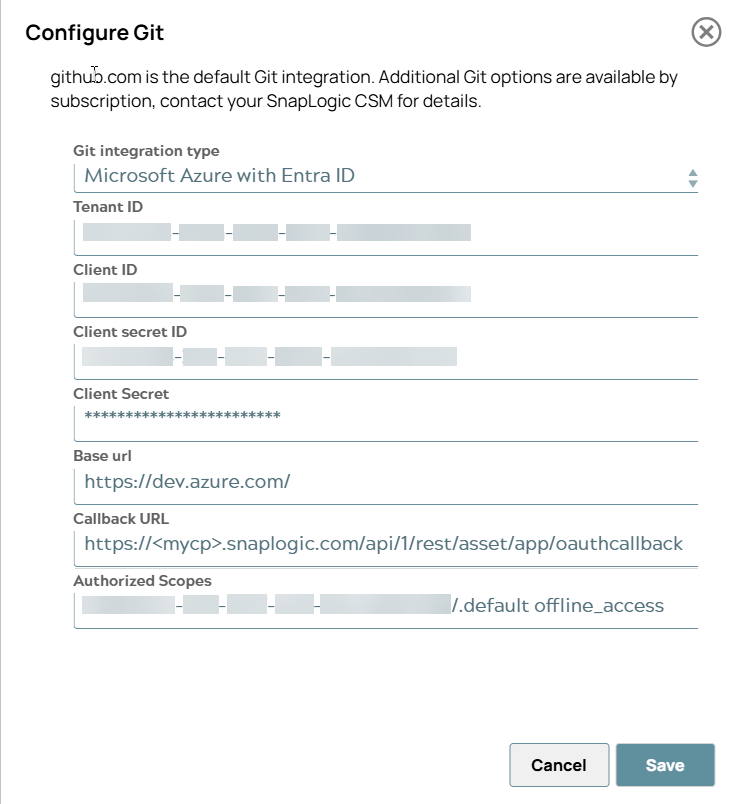

    Configure Git dialog

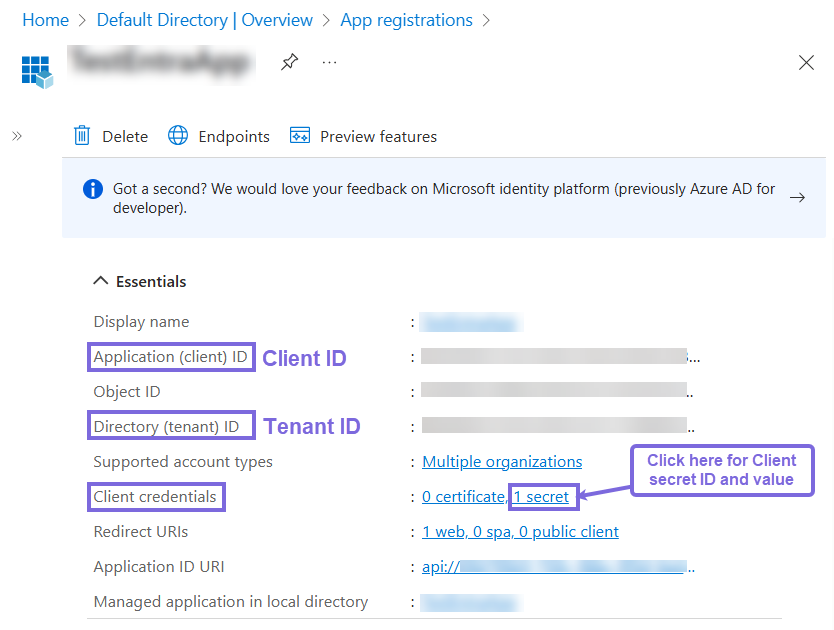

    Application Settings of the newly registered app

    Client secret values of the newly registered app
    Tenant ID Directory (tenant) ID
    Client ID Application (client) ID

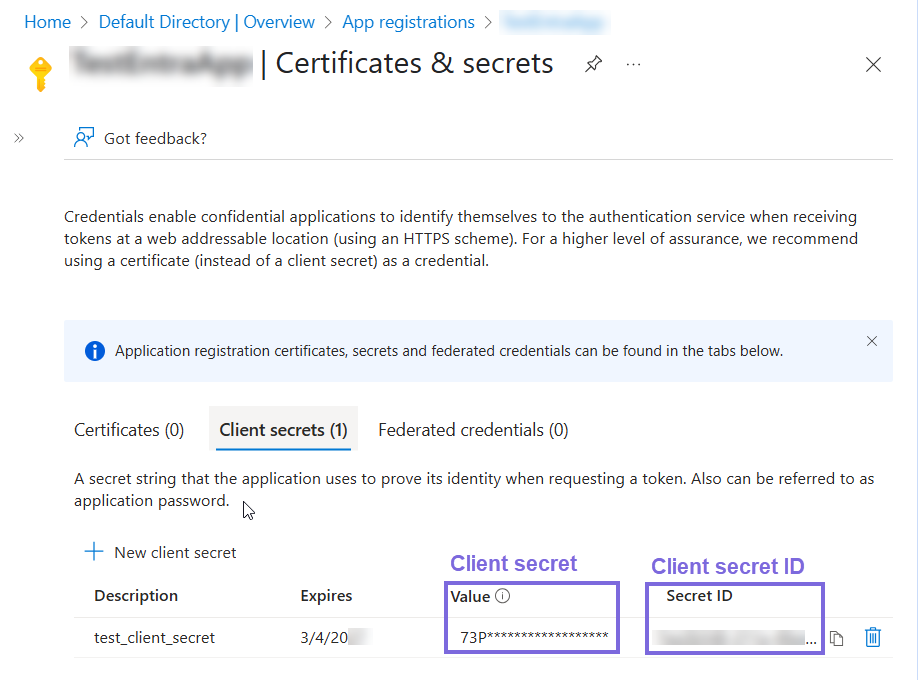

    Client secret ID Certificates & secrets > Client secrets > Secret ID
    Client secret Certificates & secrets > Client secrets > Value
    Base URL

    Accept the default https://dev.azure.com/.
    Callback URL

    Set to https://<control-plane-name>/api/1/rest/asset/app/oauthcallback.

    Where <control-plane-name> is the control plane you are using. For example:

    • elastic.snaplogic.com
    • uat.elastic.snaplogic.com
    • emea.snaplogic.com
    Authorized Scopes Enter both of the following scopes, separated by a space:
    • 499b84ac-1321-427f-aa17-267ca6975798/.default
    • offline_access

    The GUID (499b84ac-1321-427f-aa17-267ca6975798) is a fixed Microsoft-defined resource ID for Azure DevOps. It is the same for all configurations — do not replace it with your client ID.
The SnapLogic environment is now configured to connect to Azure Repos. Have users authorize SnapLogic to access Azure Repos.
