Conditional

Overview

You can use this Snap to mimic an IF statement in most programming languages. Each row of the conditional table is equivalent to an if/else if block in an if statement. The Default value property is equivalent to the else block. The first condition that evaluates to true has its value set into the provided target path, and no other conditions are evaluated. If no conditions evaluate to true, the default value (if set) is written. If Evaluate all is selected, the Snap evaluates all conditions and writes return values to their corresponding target paths.

Conditions and return values are created using the SnapLogic expression language. If no condition is set, no data flows through.



Snap views

View Description Examples of upstream and downstream Snaps
Input Document data that will be evaluated against configured conditions.
Output Document output with conditionally evaluated values mapped to the specified target paths. Example downstream Snaps include Mapper, Copy, Aggregate, Conditional, and Router.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

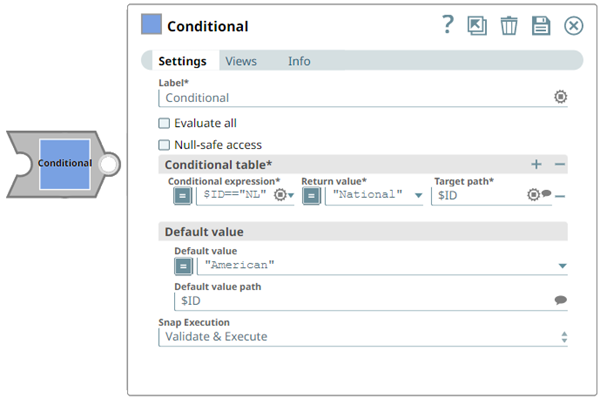

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Conditional

Example: Conditional_test
Evaluate all Checkbox Select this checkbox to evaluate all the conditions and writes all the return values to the target paths if the conditions evaluates to true.

For example, select this checkbox, and select the condition as specified below:

Conditional expression: $State == "CA"

Return value: "California"

Target path: $FullName

Conditional expression: $id == 1

Return value: "found"

Target path: $status

If the input document has the following values:
{
    State: "CA",
    id: 1
}
then the output document displays as below:
{
    State: "CA",
    id: 1,
    FullName: "California",
    status: "found"
}

Default status: Deselected

Example: Selected
Null-safe access Checkbox Select if you want to set the target value to null in case the source path does not exist. If you do not select this checkbox, then the Snap fails if the source path does not exist, ignores the record entirely, or writes the record to the error view depending on the setting of the error view property. For example, if you set the condition as $person.phonenumbers.pop() and target as $ lastphonenumber and do not select this checkbox, then it might result in an error in case person.phonenumbers does not exist on the source data. If you select this checkbox, then this option allows to write null to lastphonenumber.
Conditional table Use this fieldset to specify the if conditions. For example, the following if statement:
if($State == "CA") {
return "California";
} else if ($State == "NJ") {
return "New Jersey";
}

can be given as these conditions:

Condition1

Conditional expression: $State == "CA"

Return value: "California"

Target path: $FullName

Condition2

Conditional expression: $State == "NJ"

Return value: "New Jersey"

Target path: $FullName
Conditional expression String/Expression Required. Specify the expression based on which the condition is evaluated.

Default value: None

Example: $State == "CA"
Return value String

Specify the value to be returned if the condition evaluates to true.

Default value: None

Example: California
Target path String Specify the target path to which the return value has to be written.

Default value: None

Example: $FullName
Default value String Specify the default value to assign if none of the conditions evaluate to true, else statement. For example:
else {
return "N/A";
}

Default value: None

Example: N/A
Default value path String Specify the target path to which the return value has to be written when none of the conditions evaluate to true.

Default value: None

Example: $FullName
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate & Execute

Example: Disabled
