Databricks Account

Overview

You can use this account type to connect Databricks Snaps with data sources that use a Databricks Account with the following endpoints as the source or target:

Amazon S3
Azure Blob Storage
Azure Data Lake Storage Gen2
DBFS
Google Cloud Storage
JDBC

Behavior changes

Starting from May 2025 main31019 Snap Pack version, if you are using the bundled Databricks driver (2.6.40), you might encounter a socket timeout error.

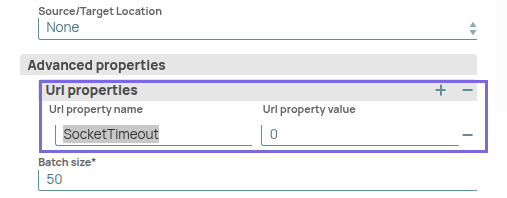

Workaround: Set the SocketTimeout value to 0 in the account URL properties field set of the Databricks Account.

Account settings

Legend:

Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.

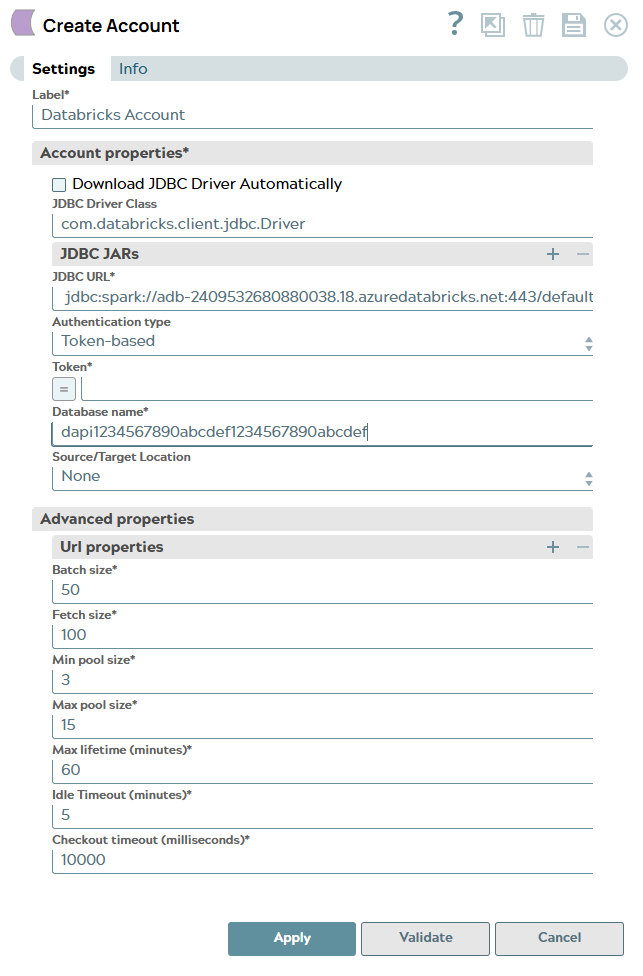

Field / Field set	Type	Description
Label	String	Required. Specify a unique label for the account. Default value: N/A Example: STD DB Acc DeltaLake AWS ALD
Account Properties	Use this field set to configure the information required to establish a JDBC connection with the account.
Download JDBC Driver Automatically	Checkbox	Select this checkbox to allow the Snap account to download the certified JDBC Driver for DLP. The following fields are disabled when this checkbox is selected: JDBC JAR(s) and/or ZIP(s) : JDBC Driver JDBC driver class We recommend that you use the bundled JAR file version (`databricks-jdbc-2.6.40`) in your pipelines. However, you may choose to use a custom JAR file version. To use a custom JDBC Driver: Deselect the Download JDBC Driver Automatically checkbox. In the JDBC Driver field, click the Upload icon. Select the desired JAR file, and click Upload File. Note: You can use a different JAR file version other than the list of JAR file versions. Note: Spark JDBC and Databricks JDBC If you do not select this checkbox and use an older JDBC JAR file (older than version 2.6.40), ensure that you use: The old format JDBC URL ( `jdbc:spark://` ) instead of the new one ( `jdbc:databricks://` ) For a JDBC driver prior to version 2.6.40, the JDBC URL starts with `jdbc:spark://` For a JDBC driver version 2.6.40 or later, the JDBC URL starts with `jdbc:databricks://` The older JDBC Driver Class`com.simba.spark.jdbc.Driver` instead of the new `com.databricks.client.jdbc.Driver`. Default status: Deselected
JDBC URL	String	Required. Enter the JDBC driver connection string that you want to use in the syntax provided below, for connecting to your DLP instance. Learn more in Microsoft's JDBC and ODBC drivers and configuration parameters. jdbc:spark://dbc-ede87531-a2ce.cloud.databricks.com:443/default;transportMode=http;ssl=1;httpPath=sql/protocolv1/o/6968995337014351/0521-394181-guess934;AuthMech=3;UID=token;PWD=<personal-access-token> Note: Avoid passing a Password inside the JDBC URL If you specify the password inside the JDBC URL, it is saved as it is and is not encrypted. Instead, we recommend using the provided Password field to ensure that your password is encrypted. Default value: N/A Example: `jdbc:spark://adb-2409532680880038.18.azuredatabricks.net:443/default;transportMode=http;ssl=1;httpPath=sql/protocolv1/o/2409532680880038/0326-212833-drier754;AuthMech=3;`
Authentication type	Dropdown list	Choose the authentication type to use. Available options are: Token-based Password (Deprecated): The basic authentication for Databricks using a username and password is no longer supported since July 10, 2024. M2M Default value: Token authentication Example: M2M authentication
Token	String/Expression	Appears when you select Token-based as the Authentication type. Required. Specify the token for Databricks Lakehouse Platform authentication. Default value: N/A Example: dapi1234567890abcdef1234567890abcdef
Username	String	Appears when you select Password as the Authentication type. Specify the username that is allowed to connect to the database. The username will be used as the default username when retrieving connections. The username must be valid to set up the data source. Default value: N/A Example: snapuser
Password	String	Appears when you select Password as the authentication type. Specify the password used to connect to the data source. The password will be used as the default password when retrieving connections. The password must be valid to set up the data source. Default value: N/A Example: <Encrypted>
Client ID	String	Appears when you select M2M as the Authentication type. Specify the unique identifier that is assigned to the application when it is registered with the OAuth2 provider. Default value: N/A Example: 12345678-abcd-1234-efgh-56789abcdef0
Client secret	String	Appears when you select M2M as the Authentication type. Specify the confidential key assigned to the application with the Client ID. Default value: N/A Example: ABCD1234abcd5678EFGHijkl9012MNOP
Database name	String	Required. Enter the name of the database to use by default. This database is used if you do not specify one in the Databricks Select or Databricks Insert Snaps. Default value: N/A Example: Default
Source/Target Location	Dropdown list	Select the source or target data warehouse into which the queries must be loaded. The available options are: None: Select None when using Read Snaps, and if you do not want to write anything to the target data warehouse. Amazon S3 Azure Blob Storage Azure Data Lake Storage Gen2 DBFS Google Cloud Storage JDBC Learn more about settings specific to each data warehouse: Source/Target location
Advanced Properties
URL properties	Use this field set to define the account parameter's name and its corresponding value. Click + to add the parameters and the corresponding values. Add each URL property-value pair in a separate row.
URL property name	String	Specify the name of the parameter for the URL property. Default value: N/A Example: queryTimeout
URL property value	String	Specify the value for the URL property parameter. Default value: N/A Example: 0
Batch size	Integer	Required. Specify the number of queries that you want to execute at a time. If the Batch size is one, the query is executed as-is, that is the Snap skips the batch (nonbatch execution). If the Batch size is greater than one, the Snap performs the regular batch execution. Default value: N/A Example: 3
Fetch size	Integer	Required. Specify the number of rows a query must fetch for each execution. Larger values could cause the server to run out of memory. Default value: 100 Example: 12
Min pool size	Integer	Required. Specify the minimum number of idle connections that you want the pool to maintain at a time. Default value: 3 Example: 0
Max pool size	Integer	Required. Specify the maximum number of connections that you want the pool to maintain at a time. Default value: 15 Example: 0
Max life time	Integer	Required. Specify the maximum lifetime of a connection in the pool, in seconds: Ensure that the value you enter is a few seconds shorter than any database or infrastructure-imposed connection time limit. 0 (zero) indicates an infinite lifetime, subject to the Idle Timeout value. An in-use connection is never retired. Connections are removed only after they are closed. Minimum value: 0 Maximum value: No limit
Idle Timeout	Integer	Required. Specify the maximum amount of time in seconds that a connection is allowed to sit idle in the pool. 0 (zero) indicates that idle connections are never removed from the pool. Minimum value: 0 Maximum value: No limit

Troubleshooting


Error	Reason	Resolution
Socket Timeouterror when connecting to Databricks.	With v2.6.35of the Databricks JDBC driver, a new feature [SPARKJ-688] was introduced in the connector that turns on the socket timeout by default for HTTP connections. The default socket timeout is set to 30 seconds. If the server does not respond within 30 seconds, a `SocketTimeoutException` is displayed.	Set the `SocketTimeout` value to `0` in the account URL properties field set of the Databricks Account.
