Source/Target location

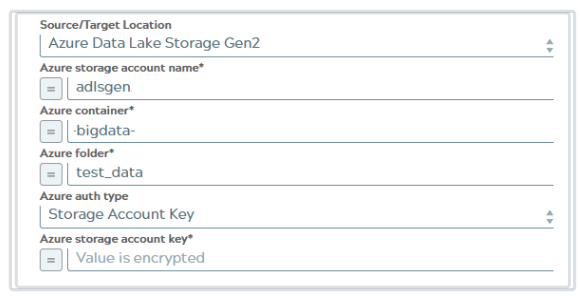

ADSL Gen2

If you select Azure Data Lake Storage Gen2 as the target data warehouse, the account displays the following fields:



Field/ Field set Type Description
Azure storage account name Dropdown list Required. Enter the name with which Azure Storage was created. The Bulk Load Snap automatically appends the '.blob.core.windows.net' domain to the value of this property.

Default value: N/A

Example: testblob
Azure Container String/Expression Required.

Enter the name of an existing Azure container.

Default value: N/A

Example: sl-bigdata-qa
Azure folder String/Expression Required.

Enter the name of an existing Azure folder in the container to be used for hosting files.

Default value: N/A

Example: test-data
Azure Auth Type Dropdown list

Select the authorization type to use while setting up the account. Options available are:

  • Storage Account Key
  • Shared Access Signature

Default value: Shared Access Signature

Example: Shared Access Signature
Azure storage account key String/Expression

Appears when Azure Auth Type is Storage account key.

Required. Enter the access key ID associated with your Azure storage account.

Default value: N/A

Example: ABCDEFGHIJKL1MNOPQRS
SAS Token String/Expression

Appears when Azure Auth Type is Shared Access Signature.

Required. Enter the SAS token, which is the part of the SAS URI associated with your Azure storage account. Learn more: Getting Started with SAS.

Default value: N/A

Example: ?sv=2020-08-05&st=2020-08-29T22%3A18%3A26Z&se=2020-08-30T02%3A23%3A26Z&sr=b&sp=rw&sip=198.1.2.60-198.1.2.70&spr=https&sig=A%1DEFGH1Ijk2Lm3noI3OlWTjEg2tYkboXr1P9ZUXDtkk%3D

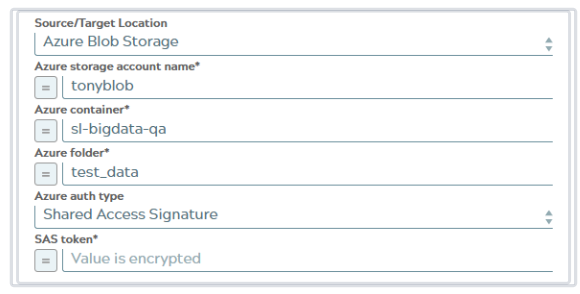

Azure Blob Storage

If you select Azure Blob Storage as the target data warehouse, the account displays the following fields:



Field/ Field set Type Description
Azure storage account name Dropdown list Required. Enter the name with which Azure Storage was created. The Bulk Load Snap automatically appends the '.blob.core.windows.net' domain to the value of this property.

Default value: N/A

Example: testblob
Azure Container String/Expression Required. Enter the name of an existing Azure container.

Default value: N/A

Example: sl-bigdata-qa
Azure folder String/Expression Required. Enter the name of an existing Azure folder in the container to be used for hosting files.

Default value: N/A

Example: test-data
Azure Auth Type Dropdown list

Select the authorization type that you want to consider when setting up the account. Options available are:

  • Storage Account Key
  • Shared Access Signature: Select when you want to enter the SAS Token associated with the Azure storage account.

Default value: Shared Access Signature

Example: Shared Access Signature
SAS Token String/Expression

Appears when Azure Auth Type is Shared Access Signature.

Required. Enter the SAS token which is the part of the SAS URI associated with your Azure storage account. Learn more in Getting Started with SAS.

Default value: N/A

Example: ?sv=2020-08-05&st=2020-08-29T22%3A18%3A26Z&se=2020-08-30T02%3A23%3A26Z&sr=b&sp=rw&sip=198.1.2.60-198.1.2.70&spr=https&sig=A%1DEFGH1Ijk2Lm3noI3OlWTjEg2tYkboXr1P9ZUXDtkk%3D
Azure storage account key String/Expression

Appears when Azure Auth Type is Shared Access Signature.

Required. Enter the access key ID associated with your Azure storage account.

Default value: N/A

Example: ABCDEFGHIJKL1MNOPQRS

AWS S3

If you select AWS S3as the target data warehouse, the account displays the following fields:

Field/ Field set Type Description
S3 Bucket String Required. Specify the relative path to a folder in the S3 bucket listed in the S3 Bucket field. This is used as a root folder for staging data to Databricks.

Default value: N/A

Example: https://sl-bucket-ca.s3.<ca>.amazonaws/<sf>
S3 Folder String Required. Specify the relative path to a folder in the S3 bucket listed in the S3 Bucket field. This is used as a root folder for staging data to Databricks.

Default value: N/A

Example: https://sl-bucket-ca.s3.<ca>.amazonaws/<sf>
Aws Authorization type Dropdown list Select the authentication method to use for accessing the source data. Available options are:
  • Source/Target Location Credentials. Select this option when you do not have a storage integration setup in your S3. Activates the Access Key and Secret Key fields for S3.

  • Source/Target Location Session Credentials. Select this option if you have session credentials to access the source location in S3. Activates the Session Access Key, Session Secret Key, and Session Token fields.

  • Storage Integration. Select this option when you want to use the storage integration to access the selected source location. Activates the Storage Integration Name field.

Default value: Source Location Credentials for S3 and Azure, Storage Integration for Google Cloud Storage.

Example: Storage Integration
S3 Access-key ID String

Required. Specify the S3 access key ID that you want to use for AWS authentication.

Default value:

Default value: N/A

Example: 2RGiLmL/6bCujkKLaRuUJHY9uSDEjNYr+ozHRtg
S3 Secret Key String

Appears when Azure Auth Type is Shared Access Signature.

Required. Specify the S3 secret key associated with the S3 Access-ID key listed in the S3 Access-key ID field.

Default value: N/A

Example: 2RGiLmL/6bCujkKLaRuUJHY9uSDEjNYr+ozHRtg
S3 AWS Token String

Appears when Source/Target Location Session Credentials is selected in Aws Authorization type.

Required. Specify the S3 AWS Token to connect to private and protected Amazon S3 buckets.

Tip:

The temporary AWS Token is used when:

  • Data is staged in S3 location.
  • Data is coming from the input and the files are staged in an external staging location.

Default value: N/A

Example: AQoDYXdzEJr

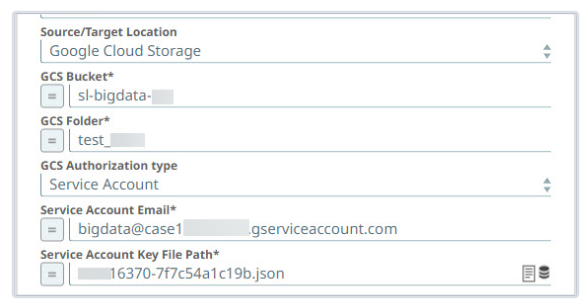

Google Cloud Storage

If you select Google Cloud Storage as the target location, the account displays the following fields:



Field/ Field set Type Description
GCS Bucket String/Expression Appears when Google Cloud Storage is selected for Source/Target Location.

Required. Specify the GCS Bucket to use for staging data to be used for loading to the target table.

Default value: N/A

Example: sl-test-bucket
GCS Folder String/Expression

Appears when Google Cloud Storage is selected for Source/Target Location.

Required. Specify the relative path to a folder in the GCS Bucket. This is used as a root folder for staging data.

Default value: N/A

Example: test_data
GCS Authorization type Dropdown list Appears when Google Cloud Storage is selected for Source/Target Location.

Select the authentication type to load data. By default the authentication type is Service Account.

Default value: Service Account
Service Account Email String/Expression

Appears when Google Cloud Storage is selected for Source/Target Location

Required. Specify the service account email allowed to connect to the BigQuery database. This will be used as the default username when retrieving connections. The Email must be valid in order to set up the data source.

Default value: N/A

Example: bigdata@iam.gserviceaccount.com
Service Account Key File Path String/Expression

Appears when Google Cloud Storage is selected for Source/Target Location.

Required. Specify the path to Key file used to authenticate the service account email address with the BigQuery database.

Default value: N/A

Example: 7f7c54a1c19b.json

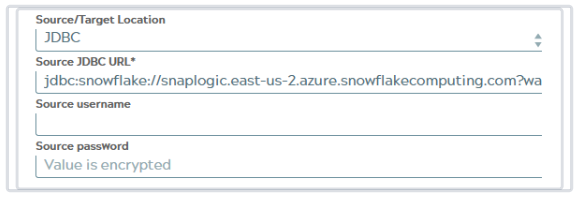

JDBC (Any SQL Database)

If you select JDBC as the target data warehouse, the account displays the following fields:



Field/ Field set Type Description
Source JDBC URL String .

Required. Specify the JDBC URL of the source table.

Default value: N/A

Example: jdbc:snowflake://snaplogic.east-us-2.azure.snowflakecomputing.com
Source username String

Specify the username of the external source database.

Default value: N/A

Example: db_admin
Source password String

Specify the password for the external source database.

Default value: N/A

Example: M#!ikA8_0/&!

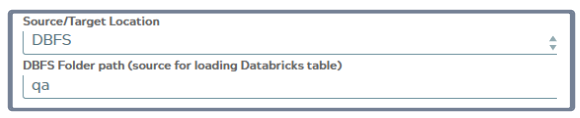

Source: DBFS

If you select the DBFS as the target data warehouse, the account displays the DBFS Folder path (source for loading Databricks table) field.



Field/ Field set Type Description
DBFS Folder path (source for loading Databricks table) String .

Enter the folder path for the source files to be loaded from. The path must begin with a forward slash /.

Default value: N/A

Example: /data_folder/path
