Sequence Snap without Input

This pipeline, Sequence_Snap_Without_Input_Data, demonstrates a basic Sequence Snap without any input data. Upon execution, the Snap generates a sequence of numbers based on the Snap's settings.


Sequence Snap pipeline

Download this pipeline

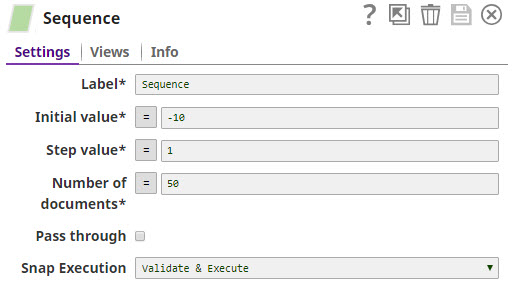

  1. The Sequence Snap is configured as shown below:

    Sequence Snap configuration

  2. Configure the Sort Snap to sort the Age in descending order and the Last Name as global. Further, set the Sort order (Global) as ascending.

    Sort Snap Configuration

  3. Validate the Snap. The Sort Snap displays the following output, with Age in descending order and, further, the Last Name in ascending order.

    Sort Snap Output

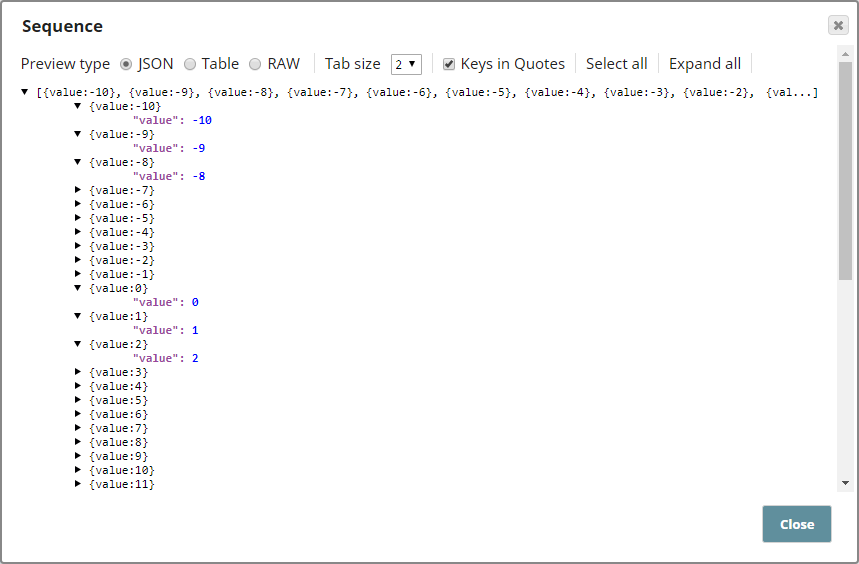

    The initial value is -10 and this is incremented by 1 to output a total 50 records. The output from the Sequence Snap is a sequence of numbers -10, -9, -8, and so on, as shown below:
    Sequence Snap Output

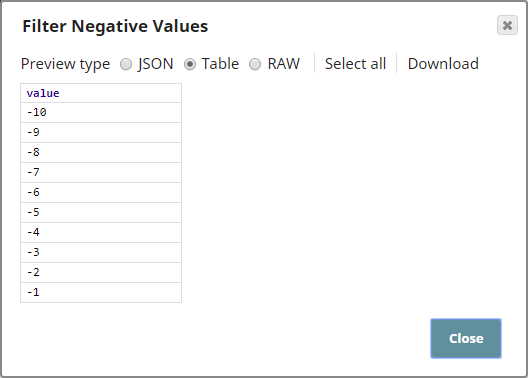

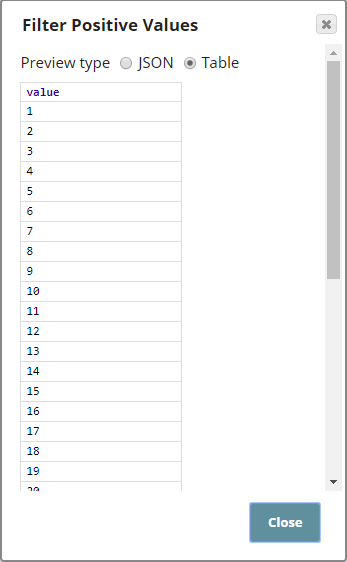

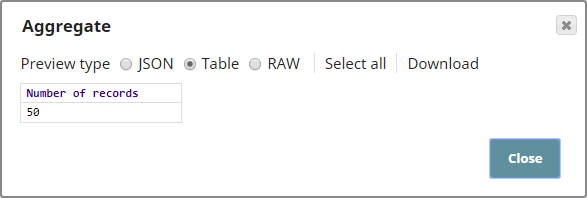

  4. The downstream Snaps are configured to demonstrate a typical use case for the Sequence Snap. In this example, an Aggregate Snap, and two filter Snaps are used. The Aggregate Snap is configured to show the total number of records, and the Filter Snaps are configured to filter negative and positive integers. Their outputs are as shown below:
    Filter Snap Output
