AWS S3 Account

Overview

You can use the AWS S3 Account to connect the Binary Snaps with data sources that are in AWS S3.

Prerequisites

Valid permissions based on the Snap and intended operation.
EC2 instance as a Groundplex. The IAM role is valid only in Groundplex nodes hosted in the EC2 environment. Learn more about Configuring an EC2 role for IAM Role in AWS S3 Account .
JCC with the following global property set:jcc.jvm_options=-DIAM_CREDENTIAL_FOR_S3=TRUE

Note: If you do not have an EC2 instance groundplex, then you can authenticate your account by using the Access Key ID and Secret Key. You can assume roles using the Cross account IAM role, that uses the IAM role specified in the settings. The Access Key ID and Secret Key need to have the ability to assume in the user specifications.

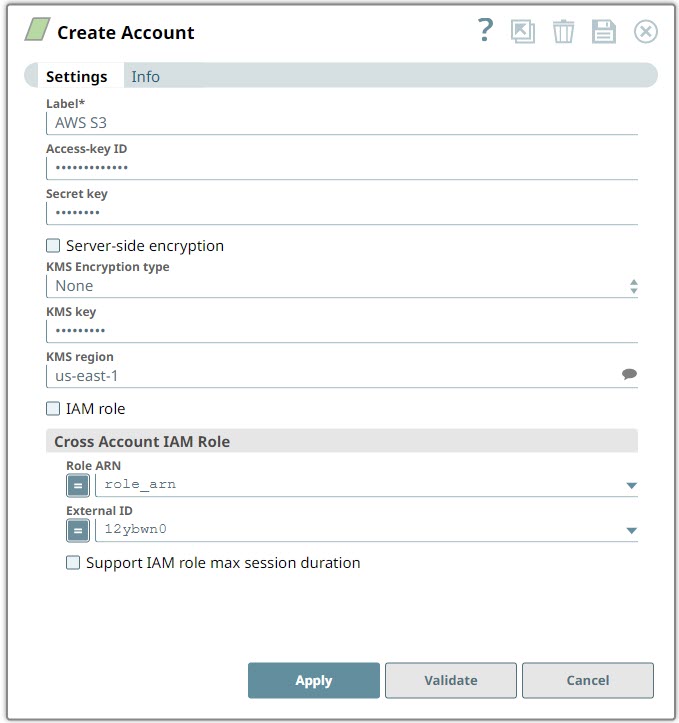

Account settings

Legend:

Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.


Field / Field set	Type	Description
Label	String	Required. Specify a unique label for the account. Default value: None. Example: AWS S3 Account
Access-key ID	String	Specify a unique access key ID part of AWS authentication. Warning: The Access-key ID is required when the IAM role is disabled. Default value: None. Example: <Encrypted>
Secret key	String	Specify the secret key part of AWS authentication. Warning: The Secret key is required when the IAM role is disabled. Default value: None. Example: <Encrypted>
Server-side encryption	Checkbox	If selected, the S3 file is written and encrypted using the 256-bit Advanced Encryption Standard AAES256. For Snaps that read objects from S3, this field is not required, as encrypted data is automatically decrypted when data is read from S3. Default status: Deselected
KMS Encryption type	Dropdown list	Choose the encryption type from the following list. This field represents the AWS Key Management Service key used to encrypt S3 objects—it can be the key ID or ARN. None: The files do not get encrypted using KMS encryption. Server-Side KMS Encryption: The output files on Amazon S3 are encrypted with Amazon S3 generated KMS key. Client-Side KMS Encryption: The output files on Amazon S3 are encrypted with client generated KMS key. Note: For Snaps that write objects to S3, this is required for encryption types—Server-Side encryption and Client-Side encryption with AWS KMS-Managed Keys. For Snaps that read objects from S3, this field is not required. For Server-Side encryption, the key must be in the same region as the S3 bucket. For Client-Side encryption, a key from any region can be used by using the key ARN value. If a key ID is used for Client-Side encryption, it defaults to the us-east-1 region. Default value: None. Example: Server-Side KMS Encryption
KMS key	String	Specify the AWS Key Management Service (KMS) key ID or ARN to be used for the S3 encryption. This is only required if the KMS Encryption type property is configured to use the encryption with KMS. Learn more about the KMS key: AWS KMS Overview and Using Server Side Encryption. Note: For Snaps that write objects to S3 using Server-Side encryption and Client-Side encryption with AWS KMS-Managed Keys this is required. For Snaps that read objects from S3, this field is not required. For Server-Side encryption, the key must be in the same region as the S3 bucket. For Client-Side encryption, a key from any region can be used by using the key ARN value. If a key ID is used for Client-Side encryption, it defaults to the us-east-1 region. Default value: N/A Example: <Encrypted>
KMS region	String/Suggestion	Specify or select a name of the region to which the KMS key belongs. Default value: N/A Example: s3.us-east-2
IAM role	Checkbox	Select this checkbox to use the Groundplex EC2 instance stored in the IAM role, instead of the normal AWS authentication to access the S3 bucket. The Access-key ID and Secret key fields are ignored in this case. Learn more about S3 . Note: The List, Read and Write permissions are required as per the attached S3 policy for the IAM role stored on the EC2 instance. The IAM role is valid only in Groundplex nodes hosted in the EC2 environment and also requires specific configuration. Set the global properties (Key and Value) on the Groundplex as shown below and restart the JCC: `jcc.jvm_options = -DIAM_CREDENTIAL_FOR_S3=TRUE` When you select the IAM Role checkbox, the validation of the account is not supported. Default status: Deselected
Cross Account IAM Role	Use this field set to configure the cross account access. Learn more about setting up Cross Account IAM Role..
Role ARN	Dropdown list/Expression	Specify the Amazon Resource Name of the role to assume. Default value: None. Example: arn:aws:s3::test-bucket-sa-sl/*
External ID	Dropdown list/Expression	Specify an external ID that might be required by the role to assume. Default value: None. Example: 321f248c-8f4a-21be-87c4-184c9f8e2d03
Support IAM role max session duration	Checkbox	Select this checkbox when you want to extend the maximum session duration of an IAM role defined in AWS. On selecting this checkbox, the cross-account IAM role is assumed with the maximum session duration defined for the IAM role. Warning: This checkbox is deselected by default. The default maximum session duration for an IAM role is one hour; however, you can define a custom duration between 1-12 hours. Learn how to increase the IAM role maximum session duration limit. We recommend that you select this checkbox if the maximum session duration of the IAM role is greater than an hour. Default status: Deselected

Troubleshooting


Error	Reason	Resolution
When authorizing an S3 account, if the IAM role checkbox is selected, the following error is displayed on clicking the Validate button. `"Failed to validate account."`	When validating the S3 account if the IAM role checkbox is selected, an error is displayed.	Account validation is not supported when you select the IAM Role checkbox.Ensure that you provide valid Role ARN and External ID values and then click Apply instead of Validate (on the account settings dialog) to authorize and use the account.

Account Permissions


Snap	Snap Operation	Minimum S3 Permissions
S3 Account	Validate the S3 account.	s3:ListAllMyBuckets
S3 File Writer	Write file only with 'File action'=OVERWRITE. Use user-defined object metadata.	s3:PutObject
	File write only with 'File action'=IGNORE or ERROR. Validate the file after writing.	s3:PutObject, s3:ListBucket
	Write object tags	s3:PutObject, s3:PutObjectTagging
	Update the Access Control List (ACL).	s3:PutObject, s3:ListAllMyBuckets, s3:PutObjectAcl
	Suggest list of buckets in the File name field.	s3:ListAllMyBuckets
	Suggest S3 objects in File name field.	s3:ListBucket
S3 File Reader	Read files	s3:GetObject
	Read versioning-enabled files.	s3:GetObject, s3:GetObjectVersion
	Suggest list of buckets in the File field.	s3:ListAllMyBuckets
	Suggest S3 objects in the File field.	s3:ListBucket
	Suggest list of Version IDs.	s3:ListBucketVersions
	Read object tags.	s3:GetObject, s3:GetObjectTagging
File Writer	Write a file with 'File action'=OVERWRITE. Create directory if not present.	s3:PutObject
File Writer	Write file with 'File action'=IGNORE or ERROR. Validate after writing.	s3:PutObject, s3:ListBucket
ZipFile Writer	Write file with 'File action'=OVERWRITE.	s3:PutObject
ZipFile Writer	Write file with 'File action'=IGNORE or ERROR.	s3:PutObject, s3:ListBucket
File Reader	Read files	s3:GetObject
ZipFile Reader	Read files	s3:GetObject
Multi File Reader	Read one file only without wildcards	s3:GetObject
Multi File Reader	Read files. Use wildcards. Include sub-folders	s3:GetObject, s3:ListBucket
Directory Browser	List files and directories.	s3:ListBucket
File Delete	Delete files	s3:DeleteObject, s3:ListBucket
File Operation	Copy files.	s3:GetObject, s3:PutObject, s3:ListBucket
File Operation	Move files	s3:GetObject, s3:PutObject, s3:ListBucket, s3:DeleteObject
File Poller	Poll files	s3:GetObject, s3:ListBucket

Learn more about Setting Permissions and Permissions for the Amazon S3 Bucket.

ACL permissions


ACL permission	Corresponding access policy permissions when the ACL permission is granted on a bucket	Corresponding access policy permissions when the ACL permission is granted on an object
`READ`	`s3:ListBucket`, `s3:ListBucketVersions`, and `s3:ListBucketMultipartUploads`	`s3:GetObject` and `s3:GetObjectVersion`
`WRITE`	`s3:PutObject` Bucket owner can create, overwrite, and delete any object in the bucket. Object owner has `FULL_CONTROL` over their objects. In addition, when the grantee is the bucket owner, granting `WRITE` permission in a bucket ACL allows the `s3:DeleteObjectVersion` action to be performed on any version in that bucket.	Not applicable.
`READ_ACP`	`s3:GetBucketAcl`	`s3:GetObjectAcl` and `s3:GetObjectVersionAcl`
`WRITE_ACP`	`s3:PutBucketAcl`	`s3:PutObjectAcl` and `s3:PutObjectVersionAcl`
`FULL_CONTROL`	Equivalent to granting `READ`, `WRITE`, `READ_ACP`, and `WRITE_ACP` ACL permissions. Accordingly, this ACL permission maps to a combination of corresponding access policy permissions.	Equivalent to granting `READ`, `READ_ACP`, and `WRITE_ACP` ACL permissions. Accordingly, this ACL permission maps to a combination of corresponding access policy permissions.
