Insert, Update, Delete, and Query a GraphQL Endpoint

Prerequisites

A valid account to access the resources from the endpoint.

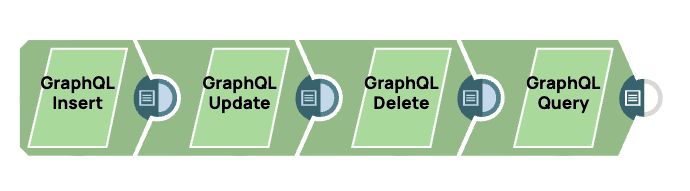

The following example pipeline demonstrates how to use the GraphQL Client Snap to insert, update, delete, and query the schema provided by the server at the specified GraphQL endpoint.

Download this Pipeline

Specify the GraphQL endpoint and then enter a query or a mutation in the Query text box. Alternatively, click the Query builder button to open a GUI query builder that contains all the available objects and fields.

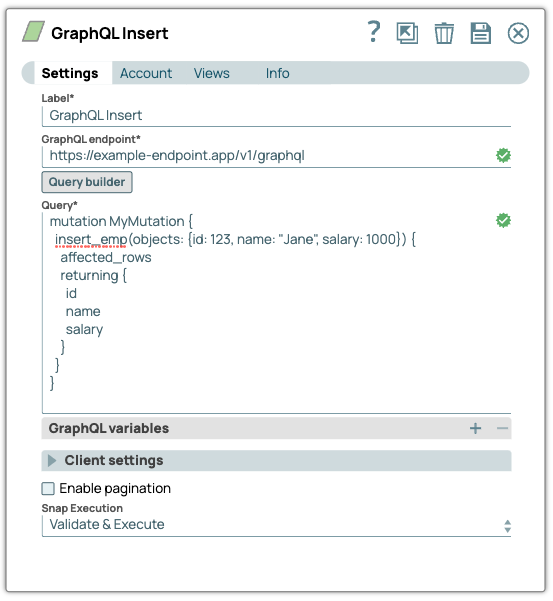

In this example, the following mutation operation inserts an employee record for Jane into the server data.
```
mutation MyMutation {
 insert_emp(objects: {id: 123, name: "Jane", salary: 1000}) {
 affected_rows
 returning {
 id
 name
 salary
 }
 }
}
```

Configure another GraphQL Client Snap to update the employee record in the server data.

mutation MyMutation {
 update_emp(where: {id: {_eq: 123}}, _set: {name: "Janet"}) {
 affected_rows
 returning {
 id
 name
 salary
 }
 }
}

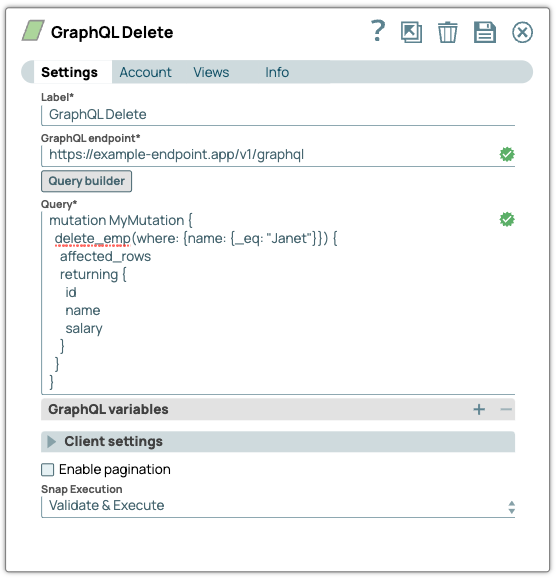

Configure another GraphQL Client Snap to delete the employee record from the server data.
In this example, the following mutation operation deletes the employee record from the server data.
```
mutation MyMutation {
 delete_emp(where: {name: {_eq: "Janet"}}) {
 affected_rows
 returning {
 id
 name
 salary
 }
 }
}
```
Finally, configure a GraphQL Client Snap to query the data for all the employee records on the server.
In this example, the following query retrieves all the employee records from the server.
```
query MyQuery {
 emp {
 id
 name
 salary
 }
}
```

To successfully reuse pipelines:

Download and import the pipeline into SnapLogic.
Configure Snap accounts as applicable.
Provide pipeline parameters as applicable.
