Unload binary data to S3

This example pipeline demonstrates how you can unload binary data from a Snowflake table and write it to an Amazon S3 bucket using the Snowflake - Unload Snap along with a JSON Formatter Snap and File Writer Snap.

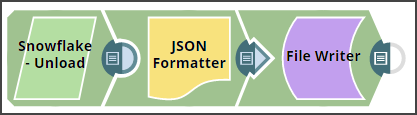

Snowflake Unload Pipeline

  1. Configure the Snowflake - Unload Snap with the query:

    select * from EMP2 – unloads data from the EMP2 table.

    Set the File format option to BINARY_FORMAT='UTF-8' to enable binary data unloading.

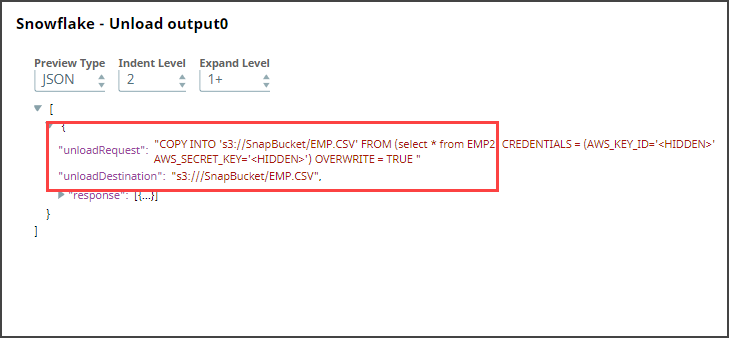

    Unload Snap Output

    Upon validation, the Snap shows unloadRequest and unloadDestination in its preview.
  2. Connect the JSON Formatter Snap to the Snowflake - Unload Snap.

    The JSON Formatter Snap transforms the binary output to JSON format for further use.


    JSON Formatter Snap Configuration

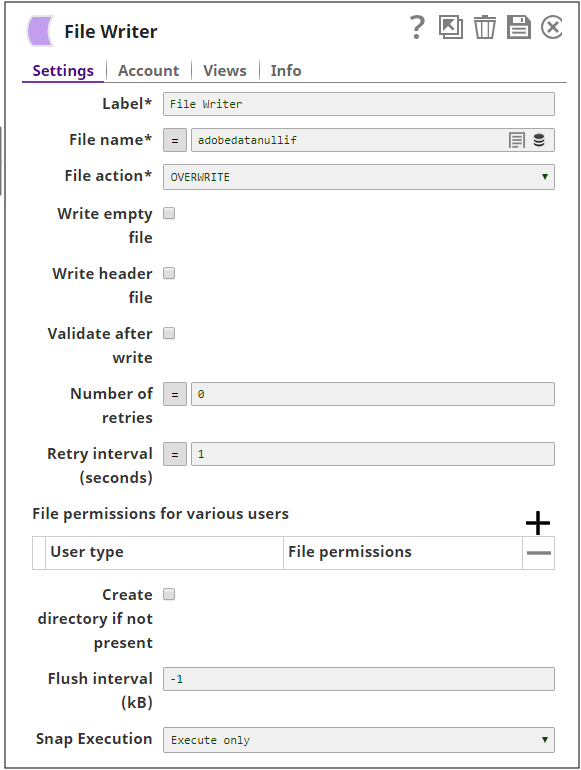

  3. Configure the File Writer Snap to write the output to an S3 bucket.

    The output from the JSON Formatter is written into an S3 bucket using the File Writer Snap.

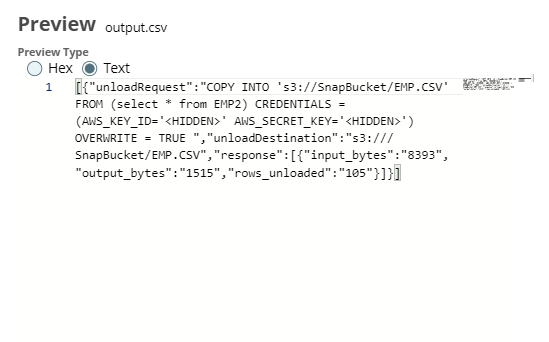

    JSON Formatter Output

    Upon successful execution, the pipeline writes the unloaded binary data as a file to the S3 bucket.
  4. Alternative Example: Use the Unload Snap with a different Snowflake table.
    This example shows how to run a Snowflake SQL query using the Unload Snap on table @ADOBEDATA2 and write the records to table adobedatanullif.

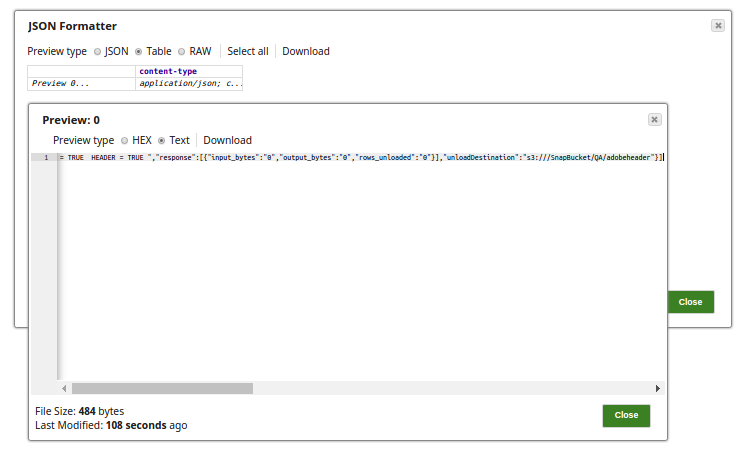

    JSON Formatter Output

    Connect a JSON Formatter Snap and File Writer Snap to transform and store the data.


    JSON Formatter Configuration

    The execution results in a JSON-formatted binary unload successfully written to S3.
