ZipFile Read

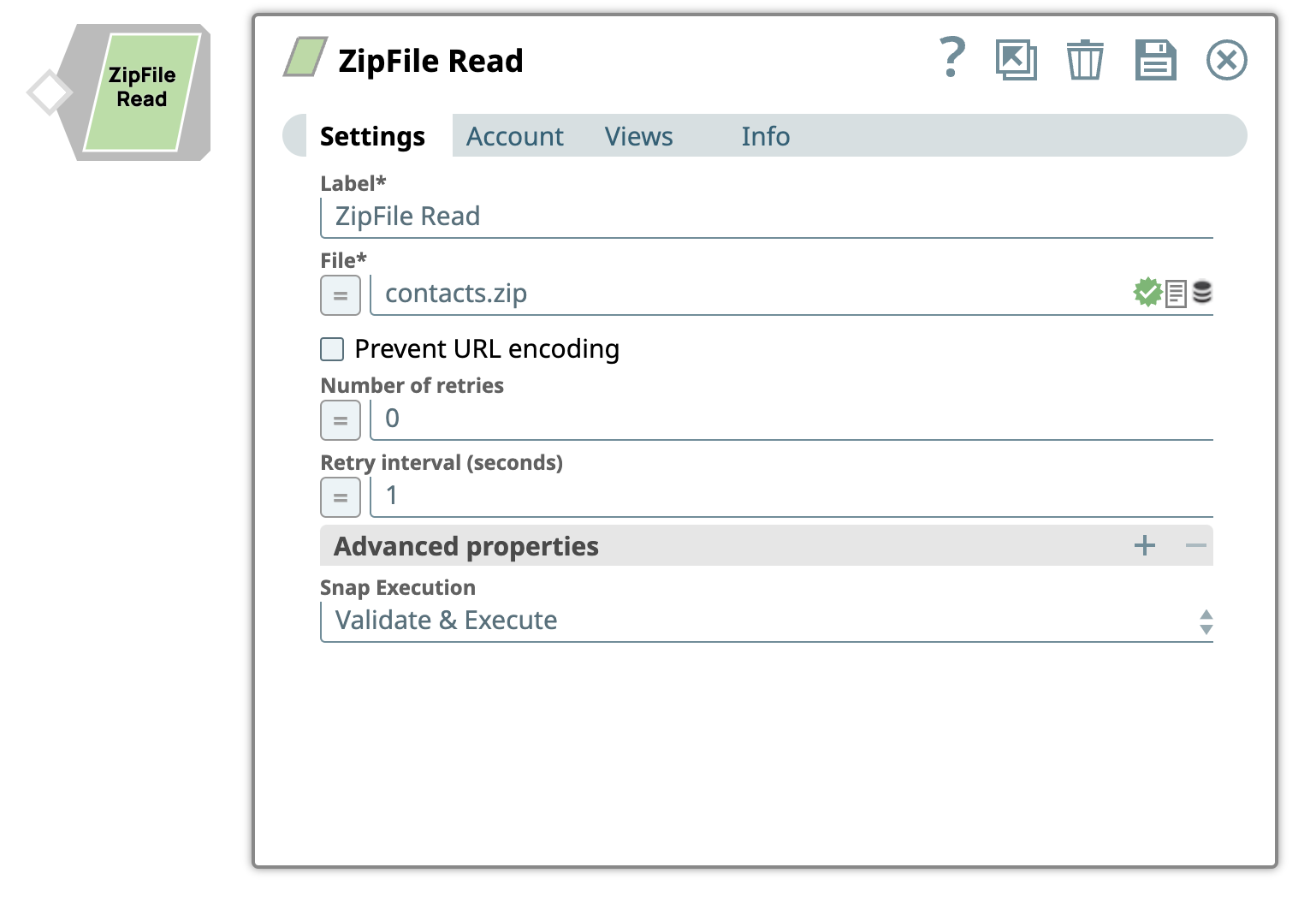

Overview

You can use this Snap to extract files from an archive file and write them to the binary output view.

Important:

We plan to introduce additional S3 features exclusively in Amazon S3 Snaps, while Binary Snaps with S3 support will not contain these updates. Therefore, we recommend you to use the Amazon S3 Snap Pack for all your S3 operations within your pipelines. However, Binary Snaps will be retained as is to maintain backward compatibility, but be aware that we will no longer provide S3 support for the Binary Snaps.

Learn more: Migrate from Binary to S3 Snaps.

Note: The archive format is automatically detected by examining the file header. The supported formats are PKZIP and 7-Zip.

Read-type Snap
Does not support Ultra Tasks

Prerequisites

IAM Roles for Amazon EC2

The 'IAM_CREDENTIAL_FOR_S3' feature is used to access S3 files from EC2 Groundplex, without Access-key ID and Secret key in the AWS S3 account in the Snap. The IAM credential stored in the EC2 metadata is used to gain access rights to the S3 buckets. To enable this feature, set the Global properties (Key-Value parameters) and restart the JCC:jcc.jvm_options = -DIAM_CREDENTIAL_FOR_S3=TRUE

This feature is supported in the EC2-type Groundplex only. Learn more.

Connect to FTP server:

To connect to the FTP server that needs to reuse the session for data transfer over TLS protocol, add:

-DFTPS_SSL_TLS_PROTOCOL=TLSV1.2 (or) TLSV1.3property as a JVM option under the Global properties of the Node Properties tab:

Known issues

This Snap Pack no longer natively supports RSA-SHA1 authentication with the Secure File Transfer Protocol (SFTP). To enable support for RSA-SHA1 authentication, set the following property from the Node Properties section of Configuration Options:
```
-Djsch.server_host_key=ssh-rsa -Djsch.client_pubkey=ssh-rsa
```

With the 4.33 GA release of the Binary Snap Pack Snap Pack, support for some algorithms for SFTP connection negotiation is removed for improved security and because we’ve updated the library used to connect to SFTP sources. If you want to revert to the previous settings, you can set the following jcc.jvm_options from the Node Properties section of Configuration Options. To update Cloudplexes, contact SnapLogic Support.

-Djsch.kex=ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521,diffie-hellman-group14-sha1,diffie-hellman-group-exchange-sha256,diffie-hellman-group-exchange-sha1,diffie-hellman-group1-sha1-Djsch.server_host_key=ssh-rsa,ssh-dss,ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521-Djsch.client_pubkey=ssh-rsa,ssh-dss,ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521-Djsch.cipher=aes128-ctr,aes128-cbc,3des-ctr,3des-cbc,blowfish-cbc,aes192-ctr,aes192-cbc,aes256-ctr,aes256-cbc-Djsch.check_ciphers=aes256-ctr,aes192-ctr,aes128-ctr,aes256-cbc,aes192-cbc,aes128-cbc,3des-ctr,arcfour,arcfour128,arcfour256-Djsch.check_kexes=diffie-hellman-group14-sha1,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521-Djsch.check_signatures=ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521

Account

This Snap uses account references created on the Accounts page of SnapLogic Manager to handle access to this endpoint. This Snap supports a Basic auth account, an AWS S3 auth account, SSH Auth account, SMB account, or no account. See Configuring Binary accounts for information on setting up accounts that work with this Snap.

Account types supported by each protocol are as follows:


Protocol	Account types
sldb	no account
s3	AWS S3
ftp	Basic Auth
sftp	Basic Auth, SSH Auth
ftps	Basic Auth
hdfs	no account
http	no account
https	no account
smb	SMB
wasb	Azure Storage
wasbs	Azure Storage
gs	Google Storage

Required settings for account types are as follows:


Account Type	Settings
AWS S3	Access-key ID, Secret key
SSH Auth	Username, Private key, Key Passphrase
SMB	Domain, Username, Password
Azure Storage	Account name, Primary access key
Google Storage	Approval prompt, Application scope, Auto-refresh token (Read-only properties are Access token, Refresh token, Access token expiration, OAuth2 Endpoint, OAuth2 token and Access type.)

Snap views


View	Description	Examples of upstream and downstream Snaps
Input	The Snap does not require input data. Input documents may be used to evaluate any JavaScript expression in the File property. It may contain value(s) to evaluate the JavaScript expression in the File property.	Upstream Snap is optional. Any Snap with a document output view can be connected upstream.
Output	Binary data read from the source specified in the File property with header information about the binary stream. Each file extracted from the provided zip file is written as binary object to this output view. The header of the binary object has details about the file extracted like content-location, content-type, content-length, last-modified, and zip-filename.	File Writer Binary Router JSON Parser
Error	Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are: Stop Pipeline Execution Stops the current pipeline execution when an error occurs. Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records. Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution. Learn more about Error handling in Pipelines.

Snap settings

Legend:

Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.


Field / Field set	Type	Description
Label	String	Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. Default value: ZipFile Read Example: ZipFile Read
File	String/Expression	Required. Specify the URL for the zip file source. It should start with a file protocol. The supported file protocols are: http https s3 sftp ftp ftps sldb smb wasb wasbs gs This Snap supports S3 Virtual Private Cloud (VPC) endpoint. Note: Ensure the file name, folder name, or the file path does not contain '?' character because it is not fully supported and when present, the Snap might fail. The FTPS file protocol works only in explicit mode. The implicit mode is not supported. Refer to : Acceptable File Paths Warning: Lint Warning The Snap displays a Lint Warning in your Pipeline in the following scenarios: `INCORRECT_FILE_PATH`: When you provide an incorrect file path to write a file, such as not following the given relative paths pattern or absolute path patterns. `INCORRECT_ORG_PATH`: When you create files or directories in a different org other than the one where the Pipeline is executing. Therefore, we recommend that you confirm to any of the acceptable relative paths. Otherwise, use an absolute path—that is provide a file path that belongs to the same org where you want to write the file, or use the File Upload icon to specify the File path. Default value: None. Example: contact.zip
Prevent URL encoding	Checkbox	Select this checkbox to prevent the Snap from automatically encoding the URL file path (including the query string if it exists) and use the file path value as-is. Refer to Encoding of characters in a URL Default status: Deselected
Number of retries	Integer/Expression	Specify the maximum number of retry attempts that the Snap must make in case there is a network failure, and the Snap is unable to read the target file. If the value is larger than 0, the Snap first downloads the target file to a temporary zip file. If any error occurs during the download, the Snap waits for the time specified in the Retry interval and attempts to download the file again from the beginning. When the download is successful, the Snap starts to unzip the data and stream the data from the temporary file to the downstream Pipeline. All temporary local files are deleted when they are no longer needed. Tip: Ensure that the local drive has sufficient free disk space to store the temporary local file. Minimum value: 0 Default value: 0 Example: 3
Retry interval (seconds)	Integer/Expression	Specify the minimum number of seconds for which the Snap must wait before attempting recovery from a network failure. Minimum value: 1 Default value: 1 Example: 3
Advanced properties	Use this field set to define additional properties for the Snap.
SAS URI	Dropdown list	The URI of the Shared Access Storage (SAS) to be accessed. Supported SAS types are: Service SAS on container Service SAS on blob Account SAS Warning: If you specify the SAS URI value in the Snap settings, then the settings provided in the account (if any account is attached) are ignored.
Values	String/Expression	Provide a value for the SAS URI.
Snap execution	Dropdown list	Choose one of the three modes in which the Snap executes. Available options are: Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime. Execute only: Performs full execution of the Snap during pipeline execution without generating preview data. Disabled: Disables the Snap and all Snaps that are downstream from it. Default value: Execute only Example: Validate & Execute

Acceptable File Paths

Relative paths
- filename.json: Saves the file in the project.
- ../shared/filename.json: Saves the file in the Project Shared Space.
- ../../shared/filename.json: Saves the files in the Org Shared project.
Absolute path
- /<org>/<projectSpace>/<project>/filename.json

Encoding of Characters in a URL

The following are some of the common characters that are automatically encoded by the Snap:


Character name	Character	URL Encoded value
backslash	\	%5C
Pound	#	%23
space		%20
percent	%	%25
Left-angle	<	%3C
Right-angle	>	%3E
Left-square	[	%5B
Right-square	]	%5D
Left-curly	{	%7B
Right-curly	}	%7D

These are some of the characters that are not automatically encoded by the Snap:


Character name	Character	URL Encoded value
ampersand	&	%26
colon	:	%3A
comma	,	%2C
dollar	$	%24
equals	=	%3D
forward slash	/	%2F
plus	+	%2B
question mark	?	%3F
semi-colon	;	%3B
