OpenFT Account
Overview
You can use this account type to connect OpenFT Snaps with data sources that use OpenFT account.
Prerequisites
None.
Limitations and known issues
None.

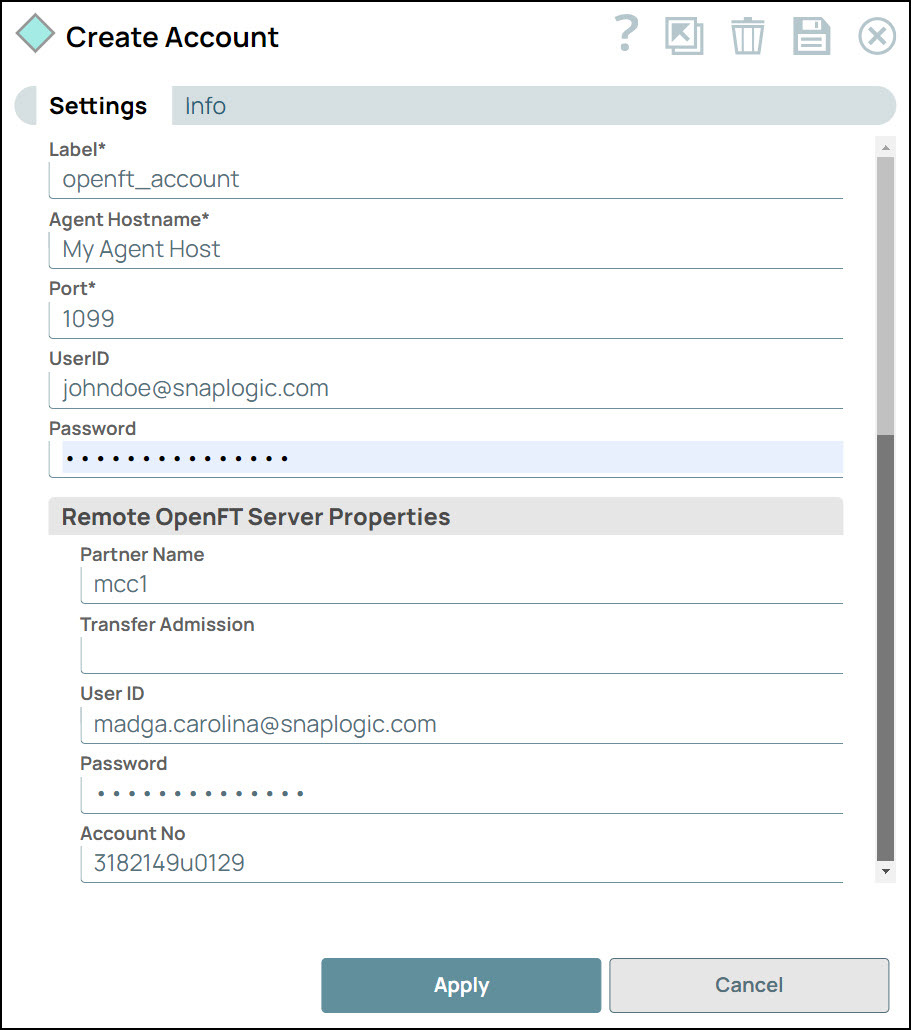

Account settings
Note:
-
Suggestion icon (
):
Indicates a list that is dynamically populated based on the configuration.
-
Expression icon (
):
Indicates whether the value is an expression (if enabled) or a static value (if disabled).
Learn more about Using Expressions in SnapLogic.
-
Add icon (
):
Indicates that you can add fields in the field set.
-
Remove icon (
):
Indicates that you can remove fields from the field set.
| Field / Field set | Type | Description |
|---|---|---|
| Label | String | Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if there are more than one of the same Snap in the pipeline. |
| Agent Hostname | String |
Required. Specify the name or IP of the system on which the OpenFT Agent is running.
Default value: N/A Example: My Agent Host |
| Port | String | Required. Specify the port number of the OpenFT Agent.
Default value: N/A Example: 1099 |
| User ID | String |
Specify the user name to connect to the Open FT. Default value: N/A Example: johndoe@snaplogic.com |
| Password | String | Specify the password associated with the entered User ID.
Default value: N/A Example: N/A |
| Remote OpenFT Server Properties | Use this fieldset to configure the OpenFT server properties. This field set contains the following fields: | |
| Partner Name | String | Name or IP of the partner OpenFT system (IP or partner name of the remote OpenFT system where the OpenFT operation is to be performed)
Default value: N/A Example: partneropenft1 |
| Transfer Admission | String | Transfer admission of an File Trasnfer Access Control (FTAC) profile on the remote administration server that permits remote administration of OpenFT instances.
Default value: N/A Example: johndoe@snaplogic.com |
| User ID | String |
Specify the user name to connect to the Open FT server. Default value: N/A Example: johndoe@snaplogic.com |
| Password | String | Specify the password associated with the entered User ID.
Default value: N/A Example: N/A |
| Account No | Integer | Account number of the remote system as supported by Open File Transfer system
Default value: N/A Example: 242115 |
Note: Click Validate after entering the required details to ensure that all fields have been filled accurately.
Click Apply to save the settings.
